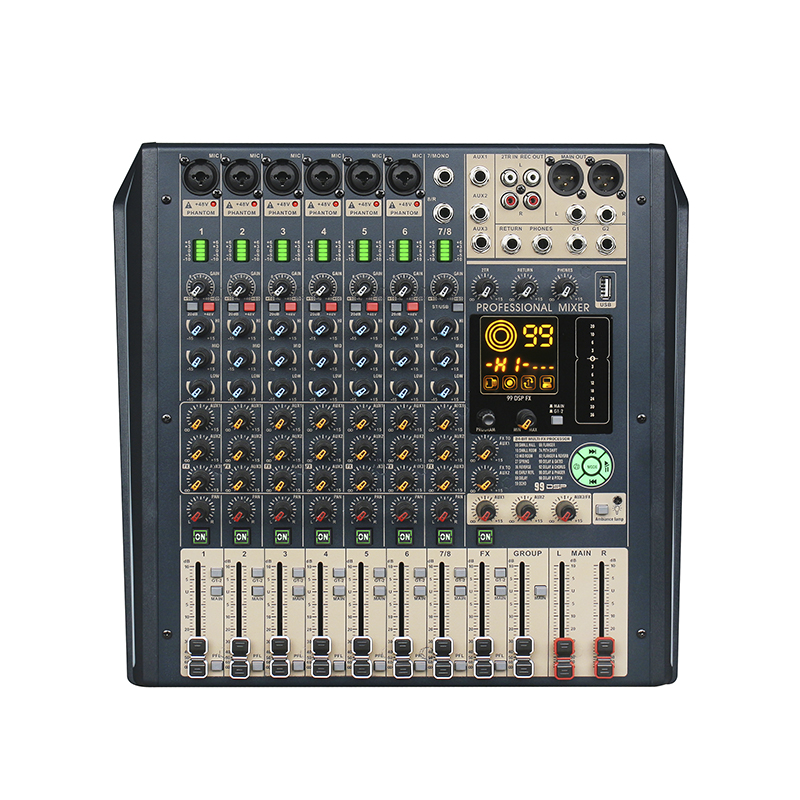

EC45 Mixer

The EC45 is an analogue audio mixer with USB output for computer/mobole phone podcasting with a choice of 6 mono inputs and stereo input, with XLR and integral 6.3mm jack sockets so that you can use different microphone or musical inpits.
Each of the 6 mono channels are equipped with 48V switched power for condenser microphoness 3 sections of balance on each, 1 AUX (auxiliary) output, each channel is equipped with an independent mute button.
It has 99 DSP (Digital Signal Processing) effects that change background and sound effects
An MP3 player is included to play pre-recorded music etc, with high, middle and low control,
it hs 3 channel balanced controls, .
Bluetooth and USB recording. .

See webpage fpr full details

Product Overview

Connect the mains cable to the Audio Mixer and turn it on at top rear of the mixer
turn on and connect the wireless microphone receivers as shown above
connect the female to male XLR cable to the condenser mic then plug the male connector into the mixer as shown above
turn on the 48 volt supply to the condenser mic by pressing the red button and chack that the red light is on below the XLR socket
turn each microphone on the button will light up Green
The condeser mic is very directional sensitive and you need to face the front of the mic where the logo shows
for sound effects like laughing, intro music etc connect the sound card to the stereo input and turn on the souund card (press power button for 3 seconds)
99 different effects to nicrophone inputs can be selected from the mixer controls
there is a mute switch at the lowest section of the mixer for each input - don't press these by mistake or you will get no sound output from that source
